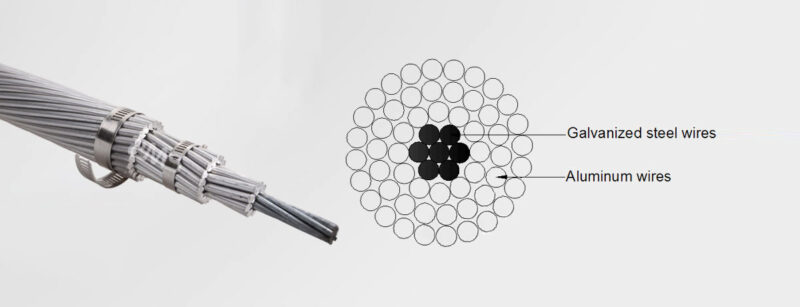

The ACSR conductor comprises a central steel core and multiple aluminum wire layers. The steel core handles mechanical tension, while aluminum carries current. This design optimizes performance over long spans.

To guard against corrosion, the steel core is typically galvanized or aluminum-clad. Additionally, we provide both grease-filled (oiled) ACSR conductors and non-grease (dry) ACSR conductors:

• Grease-filled ACSR: contains corrosion-inhibiting compound in the core or strands, preventing moisture ingress and enhancing lifespan—ideal for coastal, humid, or polluted environments.
• Non-grease ACSR: dry type, appropriate for inland installations with low corrosion risk, easier to handle and install cleanly.

Both types fully comply with ASTM B232, IEC 61089, BS 215, DIN 48204, and can be tailored based on environmental or project needs.

• High strength-to-weight ratio and excellent sag performance
• Superior conductivity, stable electrical performance
• Galvanized or aluminum-clad core or Grease for corrosion resistance
• Durable, long service life in harsh environments
• Complying with ASTM, BS, IEC, DIN, AS/NZS standards
• Factory-direct pricing, rigorous quality control

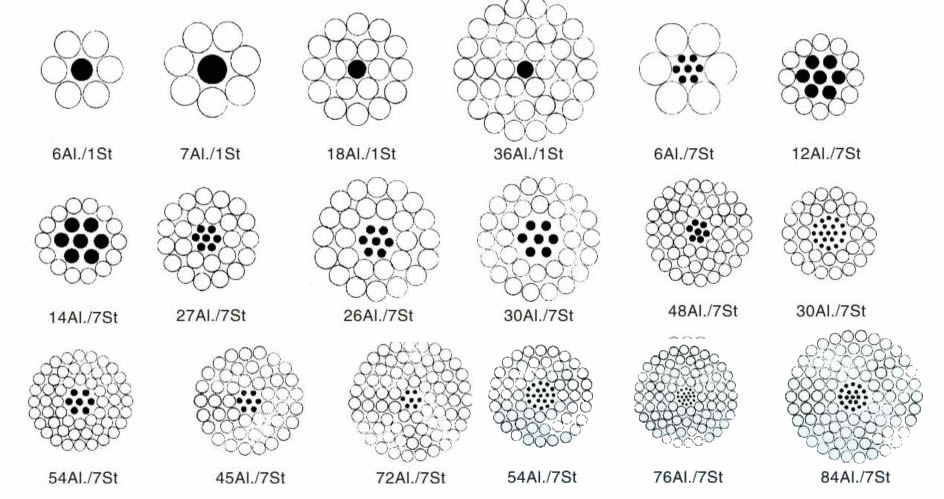

• Various strand configurations for flexible design
• Competitive ACSR conductor prices and fast global delivery

• Overhead transmission & distribution lines
• High-voltage transmission networks (HV & EHV)
• Crossings over rivers, valleys, terrain obstacles
• Upgrading or expanding existing networks

• Wooden drum
• Steel-reinforced wooden drum
• Full steel drum (export standard)

• We can produce per ASTM / IEC / BS / DIN / AS/NZS standards.
• We offer custom lengths, reel packaging, end-termination, and quality tests.
• Full QC / traceability / test reports accompany each batch.
• Support for third-party inspection (SGS, BV) and certificate export requirements.
