ACAR Conductor

Aluminum Conductor Alloy Reinforced (1350/6201 Alloy Series)

The ACAR Conductor (Aluminum Conductor Alloy Reinforced) is a high-performance overhead transmission conductor combining the excellent conductivity of aluminum with the superior mechanical strength of aluminum alloy. It is especially suitable for applications requiring both high current-carrying capacity and increased tensile strength.

As a professional ACAR conductor manufacturer and global supplier, we produce a wide range of ACAR types according to ASTM B524/B524M, IEC 61089, BS 3242, DIN 48201, and AS/NZS 3607 standards. Our factory offers custom sizes, stranding configurations, grease-filled or non-grease options, and export-standard wooden reel packaging.

Features & Benefits

High strength-to-weight ratio due to the aluminum alloy core (6201-T81 / 6101-T81).
Excellent conductivity with lighter weight compared to ACSR conductors.
All-aluminum structure eliminates galvanic corrosion risk between steel and aluminum.
Superior corrosion resistance — suitable for coastal and industrial environments.
Long span capability and reduced sag under load.

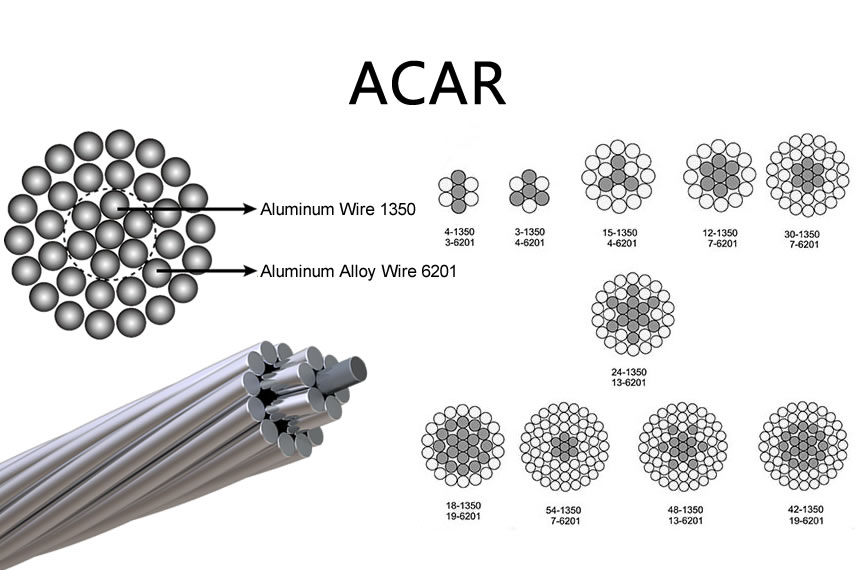

Structure & Construction

The ACAR conductor consists of a central core of high-strength aluminum alloy wires (typically 6201-T81), surrounded by concentric layers of high-conductivity 1350-H19 aluminum wires. This combination delivers optimal balance between conductivity and tensile strength.

For environments with high humidity or pollution, grease-filled ACAR versions are available to improve corrosion protection and extend service life.

Technical Specifications (Example Values)

Parameter	Typical Value	Unit
Conductor Type	ACAR 1350/6201	—
Stranding	12 Aluminum / 7 Alloy	—
Nominal Cross-Section	355	kcmil
Overall Diameter	0.683	inch
Weight	332	lb / 1000 ft
Breaking Strength	8,500	lbs
DC Resistance @20°C	0.0514	Ω / 1000 ft
Standard	ASTM B524 / IEC 61089 / BS / DIN / AS/NZS	—

Applications

Overhead power transmission and distribution lines
Long-span crossings where strength and light weight are essential
Upgrade projects replacing AAC or ACSR conductors
Coastal, desert, or industrial areas with high corrosion exposure
Transmission lines requiring improved sag performance

Packaging:

Wooden drum
Steel-reinforced wooden drum
Full steel drum (export standard)

Factory Capability & Custom Options:

We can produce per ASTM / IEC / BS / DIN / AS/NZS standards.
We offer custom lengths, reel packaging, end-termination, and quality tests.
Full QC / traceability / test reports accompany each batch.
Support for third-party inspection (SGS, BV) and certificate export requirements.

ACAR Conductor why choose LM Cables?

As a professional ACAR Conductor manufacturer, LM Cables has over 20+ years of production experience and 20+ years of export experience.Our ACAR Conductor export such as United States,Mexico,Canada,Panama,Vietnam,Korea,Bangladesh,Philippines,Malaysia,Indonesia,Thailand,Sri Lanka,Pakistan,Germany,United Kingdom,France,Italy,Spain,Russia,Ireland,Australia,New Zealand,Brazil,Argentina,Colombia,Chile,Peru,Saudi Arabia,Yemen,United Arab Emirates,Turkey,South Africa,Egypt,Kenya,Botswana,Nigeria,Tanzania,Rwanda,Iran,Mongolia etc.High quality service and production are the first choice of many customers.

Contact Us

Ready to Power Your Future?

Choosing the right ACAR Conductor is a critical decision. It's not just about today's needs; it's about the reliability and efficiency of your network for decades to come.
Our team of experts is ready to help you select the perfect solution for your specific application.
