What's 1361 ACAR Conductor 42/19
The 1361 ACAR Conductor 42/19 (Aluminum Conductor Alloy Reinforced) is a high-strength, lightweight overhead conductor designed to provide excellent conductivity and mechanical performance. It combines the superior electrical conductivity of 1350 aluminum with the enhanced tensile strength of 6201 aluminum alloy core strands.
Standards:
Our ACAR 1361 Conductor 42/19 is manufactured and rigorously tested in strict accordance with the following industry standards, guaranteeing high quality and performance:

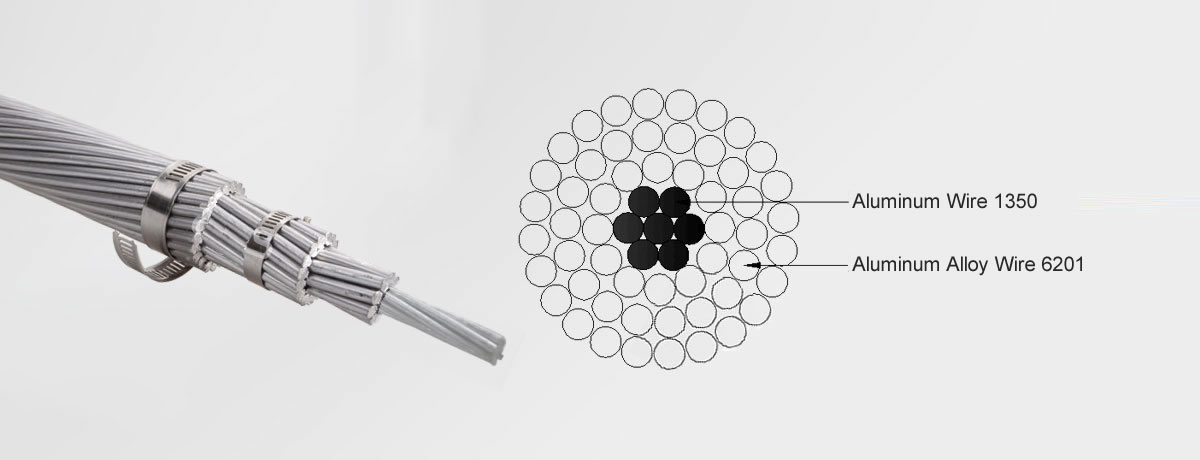

Construction:
Aluminum alloy 1350-H19 wires, concentrically stranded about an aluminum alloy 6201 core. Although the alloy strands generally comprise the core of the cable, in some constructions they are distributed in layers throughout the aluminum alloy 1350-H19 strands.
ACAR 1361 Conductor 42/19 Specification:
Get all the answers to the most frequently asked questions (FAQs) regarding ACAR 1361 Conductor 42/19 Specifications,ACAR 1361 Conductor 42/19 data sheet,ACAR 1361 Conductor 42/19 size,ACAR 1361 Conductor 42/19 full form,ACAR 1361 Conductor 42/19 ampacity,ACAR 1361 Conductor 42/19 diameter and much, much more technical specification.
| Size | 1361 (AWG or kcmil) |
| Standard | ASTM |
| Stranding | 42/19 (EC/6201) |
| Diameter Individual 6201 | 0.1494 (inches) |
| Diameter Individual 1350 | 0.1494 (inches) |
| Diameter of conductor (O.D.) | 1.344 (inches) |
| Linear mass | 1273.6 (lb/1000 ft) |
| Rated strength | 30300 (lbs) |
| Resistance DC@20 ºC | 0.0133 (ohms) |
| Resistance AC@75 ºC | (ohms) |
| Allowable Ampacity | 1196 Amps |
Packaging:
Factory Capability & Custom Options:
1361 ACAR Conductor 42/19 why choose LM Cables?
As a professional 1361 ACAR Conductor 42/19 manufacturer, LM Cables has over 20+ years of production experience and 20+ years of export experience.Our 1361 ACAR Conductor 42/19 export such as United States,Mexico,Canada,Panama,Vietnam,Korea,Bangladesh,Philippines,Malaysia,Indonesia,Thailand,Sri Lanka,Pakistan,Germany,United Kingdom,France,Italy,Spain,Russia,Ireland,Australia,New Zealand,Brazil,Argentina,Colombia,Chile,Peru,Saudi Arabia,Yemen,United Arab Emirates,Turkey,South Africa,Egypt,Kenya,Botswana,Nigeria,Tanzania,Rwanda,Iran,Mongolia etc.High quality service and production are the first choice of many customers.
